Box PC-NX213B

搭載 NVIDIA® Jetson™ Xavier™ NX Module (8GB)

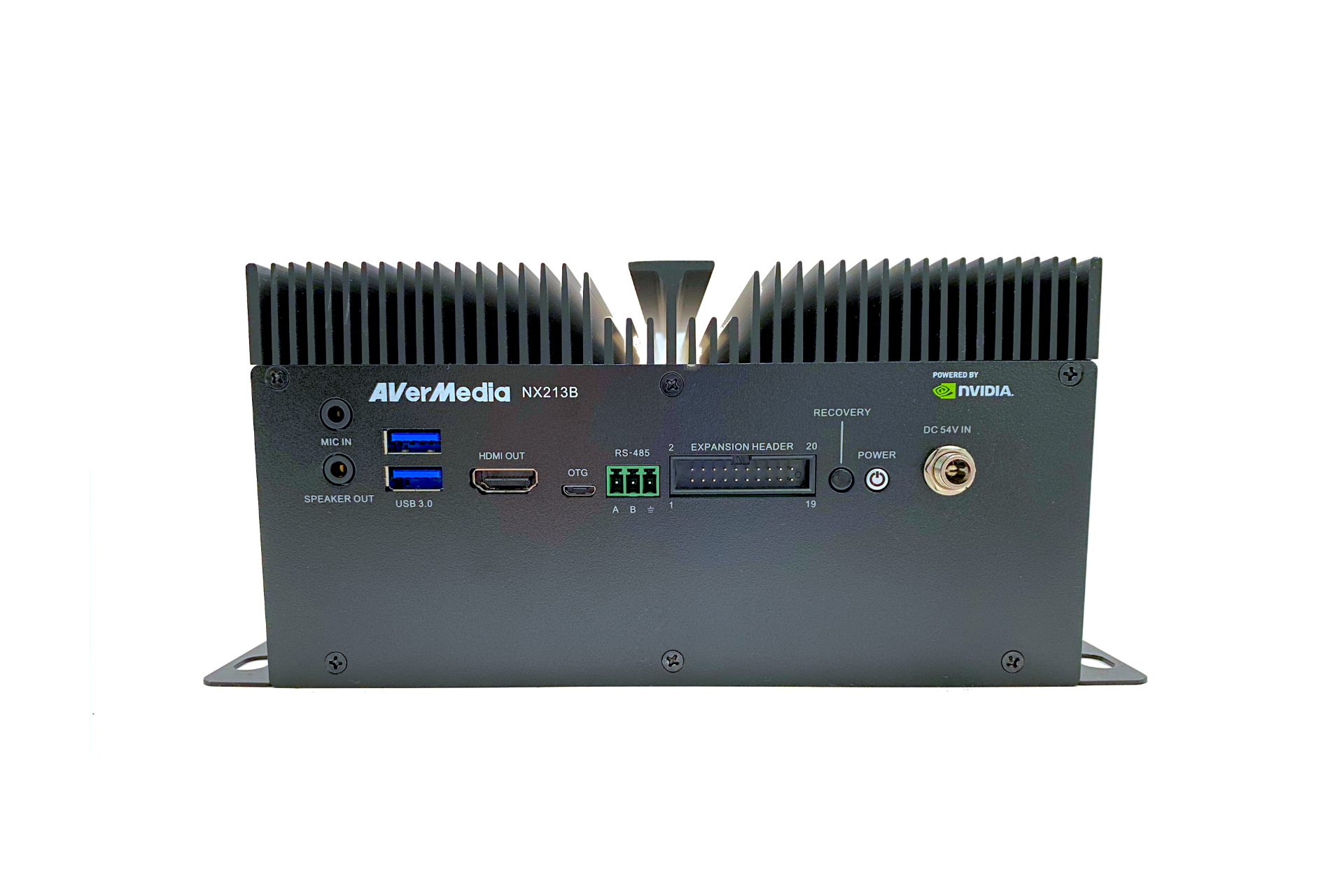

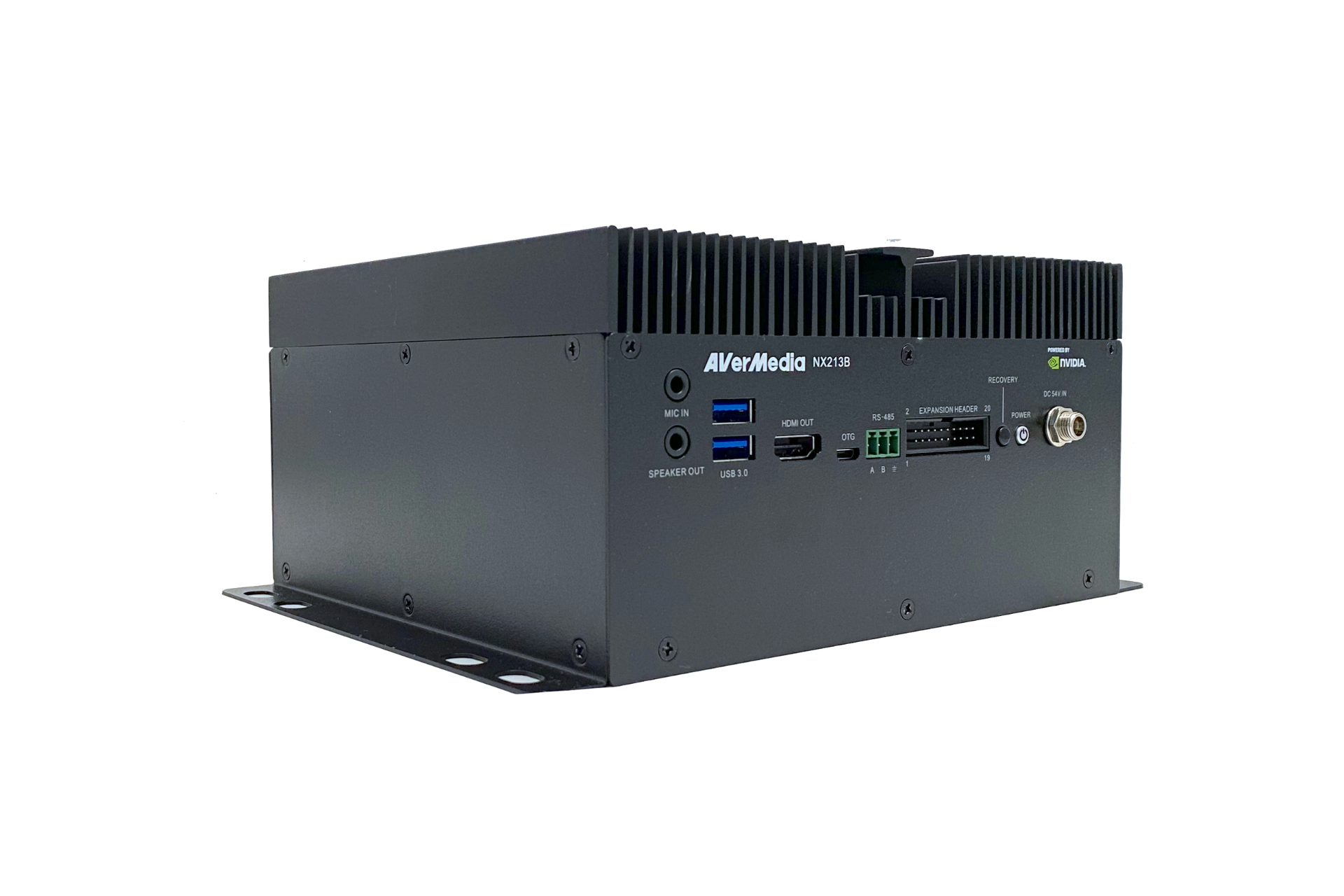

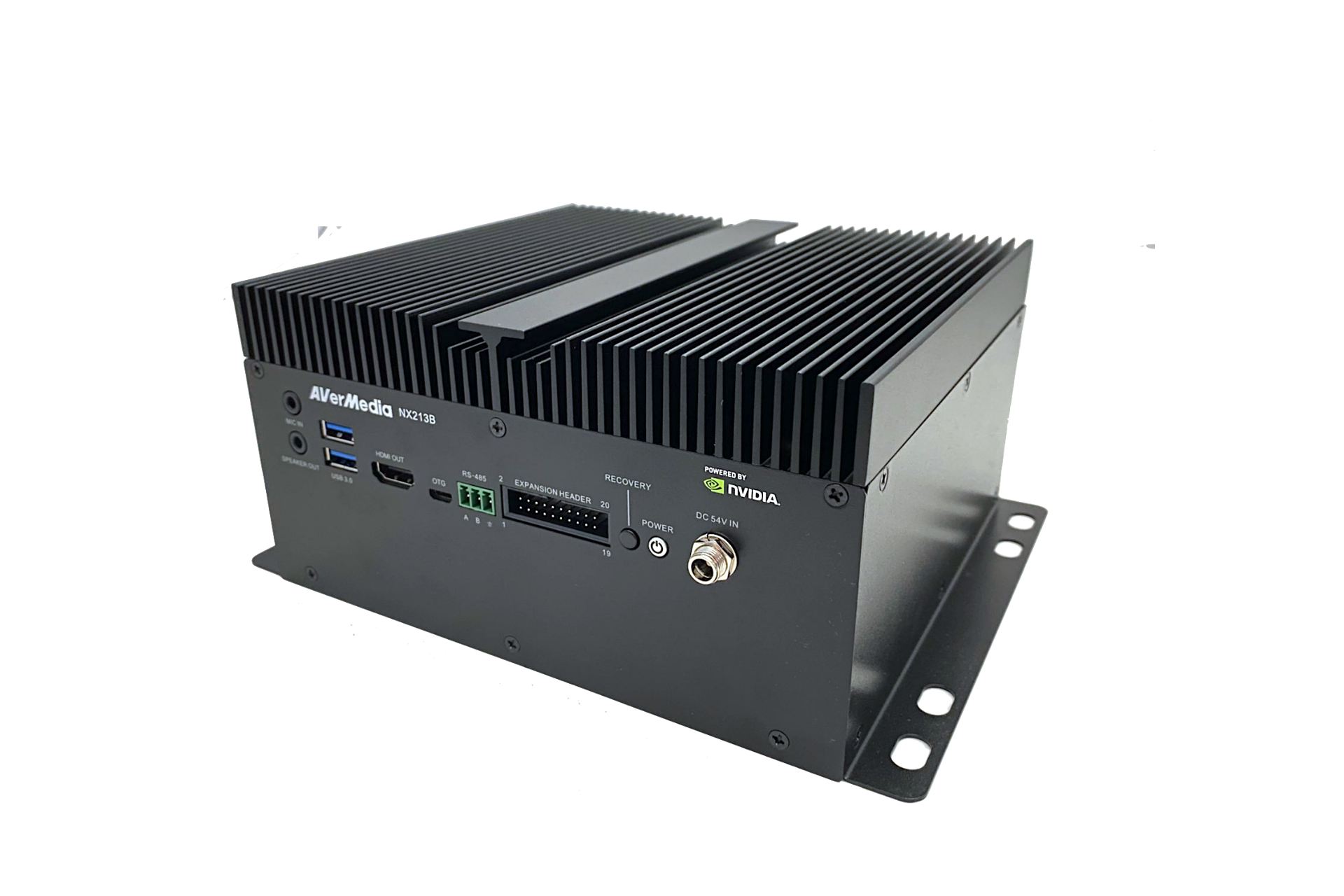

BOX PC NX213B

產品規格

• NVIDIA® Jetson Xavier™ NX module-8G

• 8x 10/100 MbE with PoE

• 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI 輸出

• 20 pins with 1x UART, 2x I2C, 9x GPIOs

• 1x RS-485 (3 pins), 1x Micro-B USB 2.0 for recovery

• 1x mPCIe (Host Interface: USB 2.0)

• 工作溫度: 0°C ~ 50°C

• 尺寸:  W190mm x L175mm x H80mm (含掛耳 W225mm)

系統需求
